• Modern fireplace insert with 2-sided corner glazing, either left or right hinged
  • Corner pane with drop-down door
  • Viewing window made of ceramic glass, heat-resistant up to 660°C
  • Body made of high quality steel
  • Afterburning of fuel particles thanks to two deflectors that lengthen the exhaust path
  • Black combustion chamber made from Thermotec, a heat-retaining material that increases the temperature in the combustion chamber
  • Equipped with an efficient combustion process
  • Simple downloads combustion air control with only one controller
  • Triple air system: primary and secondary air as well as a window flush
  • Window rinsing (cleanliness of the window over a long period of time)
  • Almost residue-free combustion by supplying combustion air via the internal grate in the firebox
  • Adjustable feet for optimal alignment
  • Elegant handle for convenient door operation
  • Firewood length: up to 30cm
  • Prepared for external combustion air supply

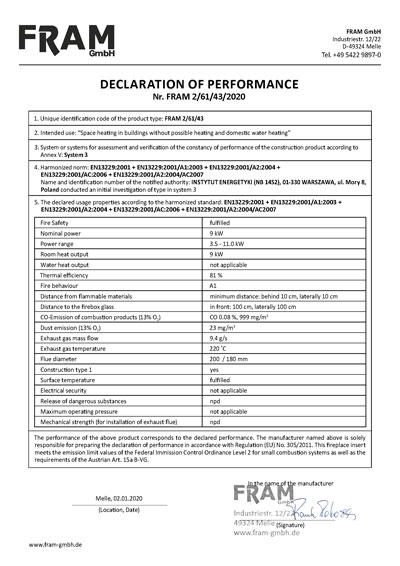

  • DIN EN 13229 / BImSchV Step 2 / Art. 15a B-VG (Austria)

The current BImSchV 2 emissions regulation expects all heaters operated in Germany to have a self-closing door. The technical devices that make this extra possible are included in all our stoves and heating inserts to guarantee easy removal from the chimney sweep.

  • Energy efficiency class: A+
  • Energy efficiency index EEI: 110.60
  • Energy nominal power: 9.0 kW
  • Power range: 3.5 - 11.0 kW
  • Thermal efficiency: 81 %
  • Dust emission (13% O2): 23 mg/Nm³
  • CO-Emission (at 13% O2) =: 0.08 %, 999 mg/m³
  • Fine dust: =40 mg/m³
  • Delivery pressure at nominal output: 12 Pa
  • Exhaust mass flow: 9.4 g/s
  • Exhaust gas temperature: 220 °C
  • Flue diameter: 200 mm
  • Combustion air nozzle: 125 mm
  • Permitted fuel: hardwood, humidity =20%
  • Firewood length up to: ca. 30 cm
  • Dimension Fram 2/61/43 left (W / H / D): 803 / 1392 / 624 mm
  • Dimension Fram 2/61/43 right (W / H / D): 803 / 1392 / 624 mm
  • Weight: 210 kg
  • Material: steel, Termotec
  • Combustion chamber lining: fireclay anthracite
  • Hinged door: ✓
  • External combustion air connection: ✓
  • BImSchV 2: ✓


Fireplace inserts FRAM 2/61/43 left






Fireplace inserts FRAM 2/61/43 right
