Modern fireplace insert with 2-sided corner glazing, either left or right hinged
Corner pane with drop-down door
Viewing window made of ceramic glass, heat-resistant up to 660°C
Body made of high quality steel
Afterburning of fuel particles thanks to two deflectors that lengthen the exhaust path
Black combustion chamber made from Thermotec, a heat-retaining material that increases the temperature in the combustion chamber
Equipped with an efficient combustion process
Simple downloads combustion air control with only one controller
Triple air system: primary and secondary air as well as a window flush
Window rinsing (cleanliness of the window over a long period of time)
Almost residue-free combustion by supplying combustion air via the internal grate in the firebox
Adjustable feet for optimal alignment
Elegant handle for convenient door operation
Firewood length: up to 40cm
Prepared for external combustion air supply

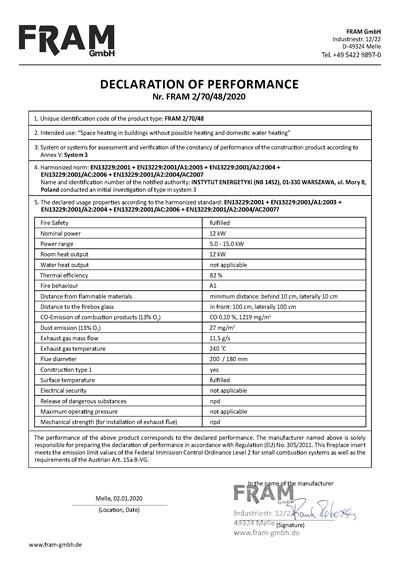

DIN EN 13229 / BImSchV Step 2 / Art. 15a B-VG (Austria)
The current BImSchV 2 emissions regulation expects all heaters operated in Germany to have a self-closing door. The technical devices that make this extra possible are included in all our stoves and heating inserts to guarantee easy removal from the chimney sweep.
Energy efficiency class: A+
Energy efficiency index EEI: 110.60
Energy nominal power: 12.0 kW
Power range: 5.0 - 15.0 kW
Thermal efficiency: 82 %
Dust emission (13% O2): 27 mg/Nm³
CO-Emission (at 13% O2) =: 0.10 %, 1219 mg/m³
Fine dust: =40 mg/m³
Delivery pressure at nominal output: 12 Pa
Exhaust mass flow: 11.5 g/s
Exhaust gas temperature: 240 °C
Flue diameter: 200 mm
Permitted fuel: hardwood, humidity =20%
Firewood length up to: ca. 40 cm
Dimension Fram 2/70/48 left (W / H / D): 895 / 1517 / 674 mm
Dimension Fram 2/70/48 right (W / H / D): 894 / 1513 / 674 mm
