• Modern fireplace insert with 3-sided corner glazing
  • Corner pane with drop-down door
  • 3-part ceramic glass, heat-resistant up to 660 °C
  • Body made of high quality steel
  • Black combustion chamber made from Thermotec, a heat-retaining material that increases the temperature in the combustion chamber
  • Combustion chamber with ash pan
  • Simple downloads combustion air control with only one controller
  • Triple air system: primary and secondary air as well as a window flush
  • Window rinsing (cleanliness of the window over a long period of time)
  • Elegant sliding door
  • Adjustable feet for optimal alignment
  • Almost residue-free combustion by supplying combustion air via the internal grate in the firebox
  • No additional fine dust filter necessary
  • Elegant handle for convenient door operation
  • Recommended fuel: firewood up to 35 cm
  • High performance and very high efficiency
  • Excellent workmanship
  • Prepared for external combustion air supply

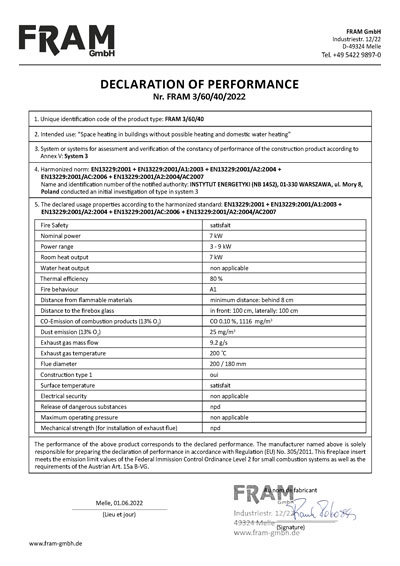

  • DIN EN 13229 / BImSchV Stufe 2 / Art. 15a B-VG (Österreich)

The current BImSchV 2 emissions regulation expects all heaters operated in Germany to have a self-closing door. The technical devices that make this extra possible are included in all our stoves and heating inserts to guarantee easy removal from the chimney sweep.
  • Energy efficiency class: A+
  • Energy nominal power: 7.0 kW
  • Power range: 4.9 - 9.0 kW
  • Thermal efficiency: 80 %
  • Dust emission (13% O2): 25 mg/Nm³
  • CO-Emission (at 13% O2) =: 0.10 %, 1116 mg/m³
  • Fine dust: =40 mg/m³
  • Delivery pressure at nominal output: 12 Pa
  • Exhaust mass flow: 9.2 g/s
  • Exhaust gas temperature: 200 °C
  • Flue diameter: 200 mm
  • Permitted fuel: hardwood
  • Firewood length up to: 35 cm

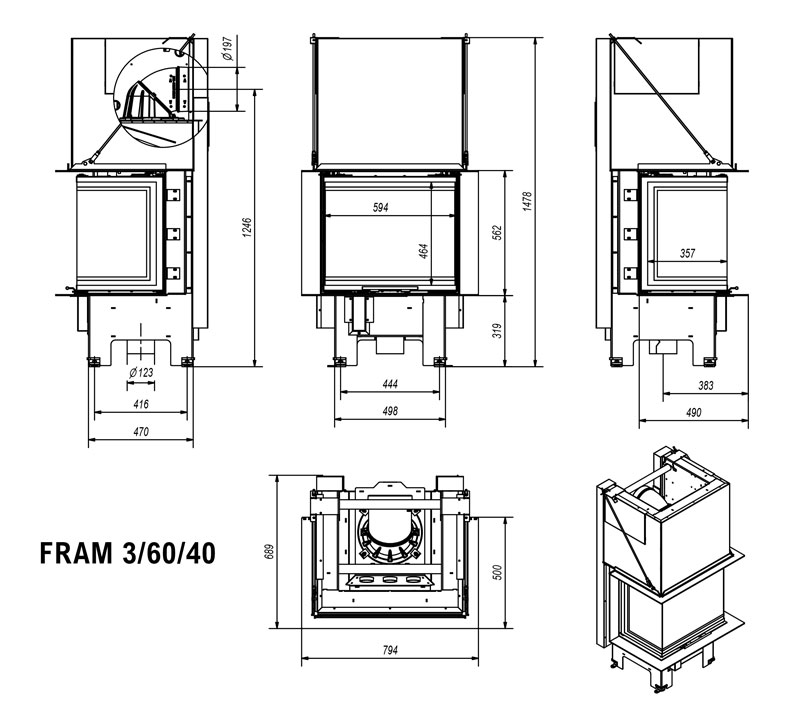

  • Dimension (W / H / D): 794 / 1478 / 689 mm
  • Weight : 239 kg
  • Material: steel, Termotec
  • Combustion chamber lining: fireclay anthracite
  • Hinged door: ✓
  • Design glass (frameless): ✓
  • External combustion air connection: ✓
  • BImSchV 2: ✓

Fireplaca insert Fram 3/60/40
