Viewing window made of ceramic glass, heat-resistant up to 800°C
Body made of high quality steel
Afterburning of particles to a deflector that extends the exhaust path
Equipped with an efficient combustion process
Black firebox lining made of Termotec - heat-storing material that increases the temperature in the combustion chamber
Simple Downloads combustion air control with only one controller
Triple air system: primary and secondary air as well as a window flush
Almost residue-free combustion by supplying combustion air via the internal grate in the firebox<
Adjustable feet for optimal alignment
Elegant handle for convenient door operation
Door hinge left for cleaning
Firewood length up to 50cm
Prepared for external combustion air supply

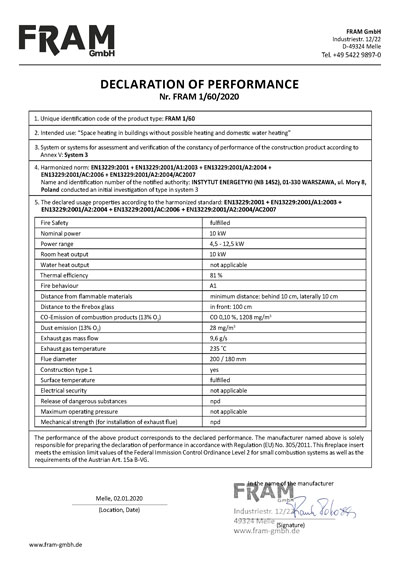

DIN EN 13229 / BImSchV Step 2 / Art. 15a B-VG (Austria)
Energy efficiency class: A
Energy nominal power: 10 kW
Power range: 4.5 - 12.5 kW
Thermal efficiency: 81 %
Dust emission (13% O2): 28 mg/Nm³
CO-Emission (at 13% O2) =: 0.10 %, 1028 mg/m³
Fine dust: =40 mg/m³
Delivery pressure at nominal output: 12 Pa
Exhaust mass flow: 9.6 g/s
Exhaust gas temperature: 235 °C
Flue diameter: 180 mm
Combustion air nozzle: 125 mm
Permitted fuel: wood
Firewood length up to: ca. 50 cm
Dimension (W / H / D): 886 / 1237 / 600 mm
Weight : 225 kg
Material: steel, Termotec
Combustion chamber lining: fireclay anthracite
Sliding door: ✓
BImSchV 2: ✓
Design glass (frameless): ✓
External combustion air connection: ✓
The current BImSchV 2 emissions regulation expects all heaters operated in Germany to have a self-closing door. The technical devices that make this extra possible are included in all our stoves and heating inserts to guarantee easy removal from the chimney sweep.
