Viewing window made of ceramic glass, heat-resistant up to 800°C
Body made of high quality steel
Afterburning of particles to a deflector that extends the exhaust path
Equipped with an efficient combustion process
Firebox lining made of Acumotte - heat-storing material that increases the temperature in the combustion chamber
Simple Downloads combustion air control with only one controller
Triple air system: primary and secondary air as well as a window flush
Almost residue-free combustion by supplying combustion air via the internal grate in the firebox
Adjustable feet for optimal alignment
Elegant handle for convenient door operation
Door hinge left for cleaning
Firewood length up to 50cm
Prepared for external combustion air supply

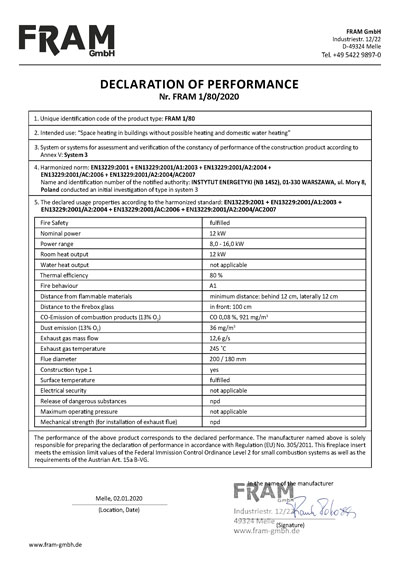

DIN EN 13229 / BImSchV Step 2 / Art. 15a B-VG (Austria)
Energy efficiency class: A
Energy nominal power: 12.0 kW
Power range: 8.0 - 16.0 kW
Thermal efficiency: 80 %
Dust emission (13% O2: 36 mg/Nm³
CO-Emission (at 13% O2 =: 0.08 %, 921 mg/m³
Fine dust: =40 mg/m³
Delivery pressure at nominal output: 12 Pa
Exhaust mass flow: 12.6 g/s
Exhaust gas temperature: 245 °C
Flue diameter: 180 mm
Combustion air nozzle: 125 mm
Permitted fuel: wood
Firewood length up to: ca. 50 cm
Dimension (W / H / D): 1016.8 / 1305 / 603 mm
Weight : 278 kg
Material: steel, Termotec
Combustion chamber lining: fireclay anthracite
Sliding door: ✓
BImSchV 2: ✓
Design glass (frameless): ✓
External combustion air connection: ✓
The current BImSchV 2 emissions regulation expects all heaters operated in Germany to have a self-closing door. The technical devices that make this extra possible are included in all our stoves and heating inserts to guarantee easy removal from the chimney sweep.
