Home/Products/Cassette inserts/Cassette insert RK/80
  • Solid construction of high quality steel and Termotec
  • Viewing window made of ceramic glass, heat-resistant up to 800°C
  • Frameless design viewing panel, which is located in front of the frame,
    makes the glass panel appear larger and the fireplace insert more elegant.
  • The pane flushing enables a clear view of the fire (cleanliness of the viewing pane over a long period of time),
    contamination of the pane is minimized.
  • Deflector for long flue gas path

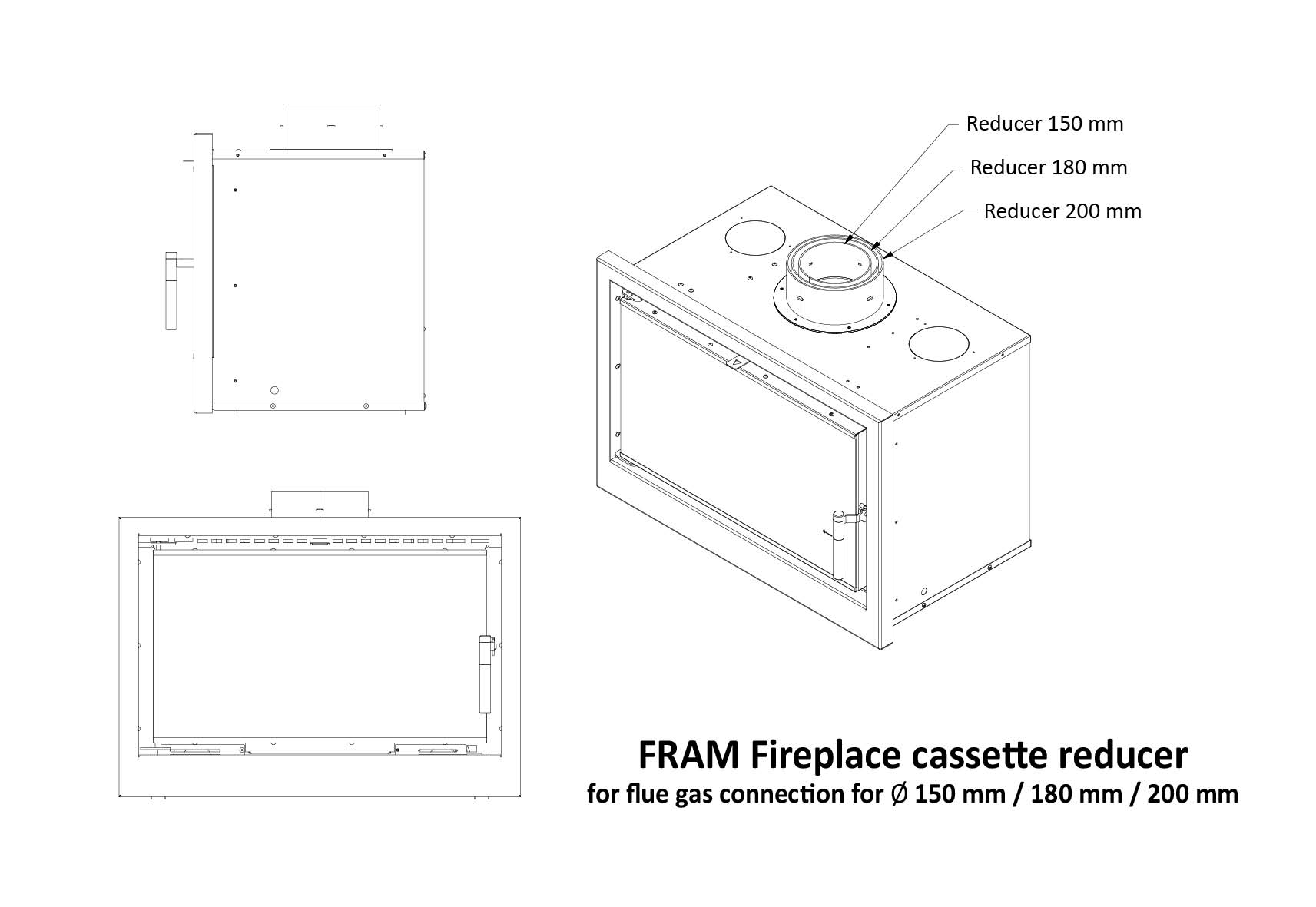

  • Exhaust gas pipe diameter adjusted to 150 mm by default using a reducer (see technical drawing)
  • Combustion chamber with embers and ash pan
  • Axial fan (hot air blower) with control, works with a low power consumption of 38 W
  • Additional rooms can be heated - requires pipes with a diameter of 125 mm
  • 24 hour operation possible
  • Simple operation
  • Timeless design
  • Body black lacquered
  • High performance
  • Good efficiency
  • Excellent workmanship
  • Firebox lining made of Termotec - heat-storing material that increases the temperature in the combustion chamber
  • Approved in Germany

  • Energy efficiency class: A
  • Energy nominal power: 12.0 kW
  • Power range: 6.0-16.0 kW
  • Thermal efficiency: 85.0 %
  • Dust emission (13% O2): 34 mg/m3
  • CO-Emission (at 13% O2): 0.10 %, 1208 mg/m3
  • Fine dust: 40 mg/Nm3
  • Delivery pressure at nominal output: 12 Pa
  • Exhaust mass flow: 11.6 g/s
  • Exhaust gas temperature: 320 °C
  • Flue diameter: 150 mm through reducer
  • Flue pipe connection: at the top
  • Permitted fuels: wood, wood briquettes
  • Firewood length up to max.: 50 cm
  • Dimension (W / H / D): 850 / 614 / 470.5 mm
  • Weight: 132 kg
  • Ventilator power input: 38 kW
  • Ventilator noise level: 38 dB
  • Ventilator perfomance: 280 m3/h
  • Glazing type: flat
  • Door opening direction: hinged
  • Material: steel, Termotec
  • BImSchV Step 2: ✓
  • External air supply: -
  • Combustion chamber lining: ✓
  • Ash pan: ✓
  • Design glass (frameless): ✓

Cassette insert FRAM RK/80
Cassette insert FRAM RK/80
